0.12mm Aluminized Fiberglass Insulation Cloth For Marine Covers

Name: 012mm Aluminized Fiberglass Insulation Cloth For Marine Covers
Brand: Jiangnan
Price: 1 USD

Brand Name : Jiangnan

Model Number : Aluminum Foil Fiberglass Cloth

Certification : ISO 9001 2015

Place of Origin : CHINA

MOQ : 500 Meters

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Square Meters per day

Delivery Time : 14 Days after the Payment

Packaging Details : Fire Retardant Aluminum Heat Barrier Foil Coated Fiberglass Fabric 1. Each roll use waterpoof bag then Pallet 2. Bulking package

Product Name : Al-75 0.12mm Aluminized Fiberglass Cloth

Weight : 75g/m2

Weave Type : Plain Woven

Coating : Aluminum Foil

Usage : Flame Retardant, Heat Insulation

Good Features : Insulation, Good Heat Reflection, Abrasion Proof

MOQ : 100 Square meter

Standing Temperature : 300ºC

Contact Now

AL 75 0.12mm Aluminized Fiberglass Heat Insulation Cloth For Marine Covers Of Steam Turbine

1. Description:

The aluminum foil composite glass cloth is made of unique advanced composite technology. The composite aluminum foil has smooth and smooth surface, high reflectivity, high longitudinal and transverse tensile strength, air tightness, and waterproof and sealing performance

Aluminized Fiberglass Heat Reflective Fabric has different thickness.

Product Construction
Materlal Composition	Material Description	Value Standard
Foil	Aluminum	9 Micron
Adhesive	Pressure Sensitive Oily Adhesive and Water Base Glue	Adjust according to different thickness of base fabric
Fiberglass Cloth	Each difference Thickness Cloth	75-2000g

2. Table 1: Data Sheet of AluminumFiberglass Cloth

AL-75
Item Model		Aluminum Foil Fiberglass Fabric	Test Standard
Weave Structure		Plain Weave
Aluminum Foil Thickness		9μm
Weight		75 gsm	ASTM D3776-96
Thickness		0.12mm	ASTM D1777-96
Thread Count	Warp	12±1 ends/cm	GB/T 7689.2-2013
	Weft	8±1 picks/cm
Break Strength	Warp	210 N/cm	GB/T 7689.5-2013
	Weft	210 N/cm
Color		Silver
Working Temperature		≤300℃
Flame Resistance		Non-Combustible Cloth
Advantages		Radiant Thermal Reflective

3. What is the Aluminum Foil Fiberglass Cloth Application?

Electrical insulation: it can be made into insulating cloth and casing for places requiring high electrical insulation.
Non-metallic compensator: used as a pipeline flexible joint, non-metallic compensator. Mainly used in power stations, petroleum, chemical, cement, steel, etc.
Anti-corrosion department: used as the internal and external anti-corrosion layer of pipelines and preservation tanks. It is an ideal anti-corrosion material.
Fire protection department: It can be used as fire protection fabric in automobile manufacturing and shipbuilding industry.
Others: It can also be used as building sealing materials, high temperature resistant and anticorrosive tapes, packaging materials, decorative materials, etc.

4. Product Features:

Aluminum foil fiberglass composite fabric reflects 95% or more of the radiant heat that contacts its surface. Constructed from a high-temperature base fiberglass which is then coated with aluminum foil or aluminum film.

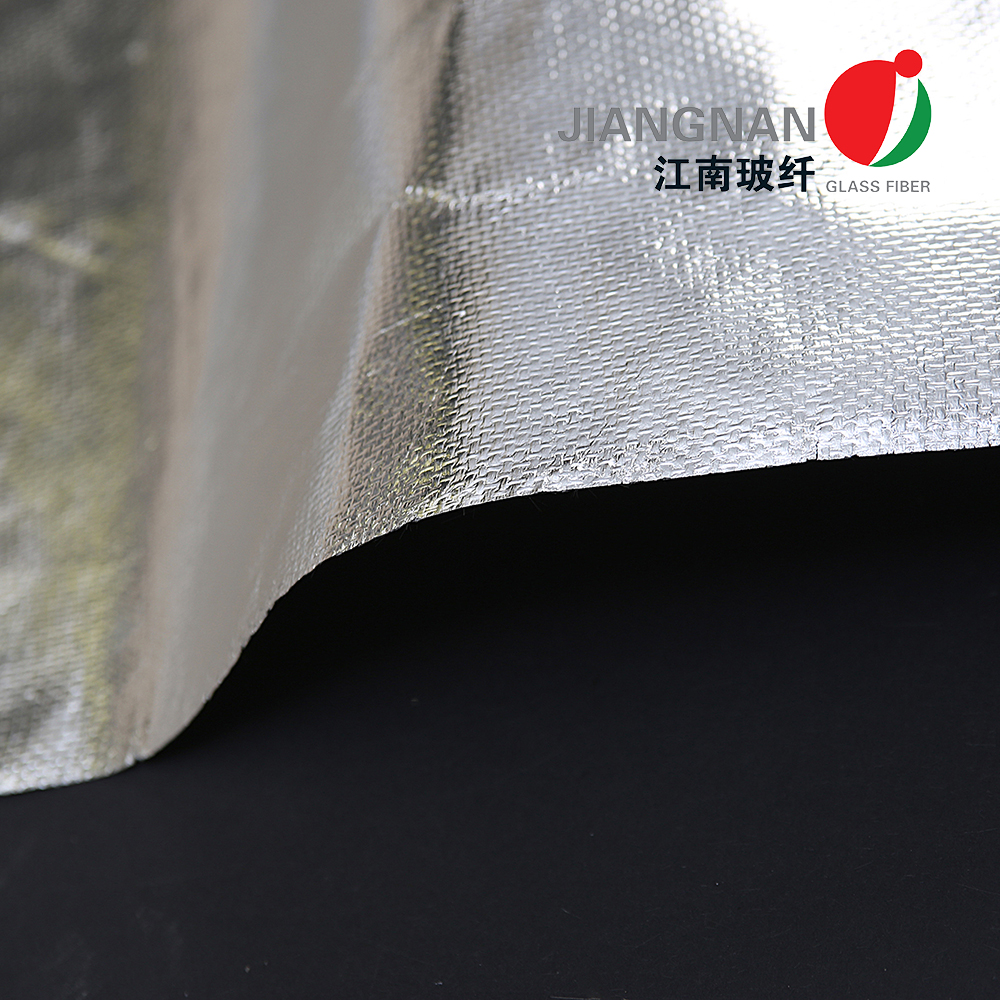

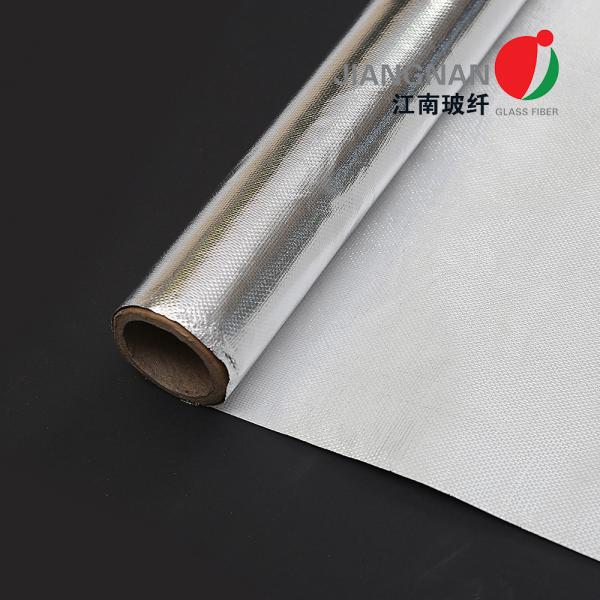

5. Detail images for Aluminum Foil Cloth

0.12mm Aluminized Fiberglass Insulation Cloth For Marine Covers

6: Other Related Products

Item no.	Weave	Density per cm	Weight g/m2	Thickness	Aluminum Foil Thickness	Tensile Strength
		Density per cm				N/5cm
		Warp & Weft				Warp & Weft
AL75	Plain	12*8	75	0.1mm	7Micron	380*370
AL7628	Plain	18*12	200g/m2	0.2mm	7Micron	2025*1620
AL3732	3x1 Twill	18*12	430g/m2	0.43mm	7/18Micron	6000*4500
ALFW600	Double Plain	15*15	600g/m2	0.55mm	7/18Micron	6000*5000
AL2025	Plain	8*5.7	610g/m2	0.75mm	7/18Micron	2025*1216
AL-M30	Plain	6*3.8	1020g/m2	1.2mm	7/18Micron	3000*2200
AL-3784	Satin	18*13	880g/m2	0.9mm	7/18Micron	8000*6000
Other thickness and weight can also be customized according to your Requirement 75g<Weight<2000g 0.1mm<Thickness<3mm
