3732 430gsm 0.4mm Fiberglass Fabric Cloth Cross Twill Weave E Glass

Brand Name : Jiangnan

Model Number : 3732

Certification : ISO9001:2015

Place of Origin : CHINA

MOQ : 500 Meters

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 Square Meters per day

Delivery Time : 14 Days after the Payment

Packaging Details : Carton Box，Woven Bag

Price : Negotiable

Product Name : 3732 430gsm 0.4mm Fiberglass Fabric Cloth

Thickness : 0.4mm

Yarn Type : E-glass

Weight : 430gsm

Feature : Fireproof, E-glass High Strength

Application : Fire Blanket, Welding Protection

Standing temperature : 550 Degree

Weave type : Twill Woven

Material : 100% Fiberglass

Sample : Free sample

Contact Now

3732 430gsm 0.4mm Fiberglass Fabric Cloth Cross Twill Weave E Glass





1. Descriptions:



Fiberglass is a lightweight, versatile, and cost-effective material used in an endless variety of industrial and commercial products. Since it is made from glass, it is naturally resistant to heat, fire, water, chemicals, pests, and bacteria. It is lighter and more flexible than other types of mesh products such as steel, but still retains high tensile strength, which means it can hold up under pressure without breaking. In fabric form, fiberglass has the added benefit of conforming to odd-shaped angles and curves, such as those found on a surfboard or a snowmobile. In these applications, the fiberglass fabric provides a framework to which a liquid resin is bonded, providing strength, form and durability to the end product.

2. Specification

Type
3732 Fiberglass Fabric
Weight
430g/m2
Width
1 to 2m
Roll Length
50m, 100m, 150m, 200m
Temperature Resistance
-70°C to 550°C
Kniting Type
Twill
Glass Yarn Type
E-glass
Advantage
Good Insulation, Heat Resistance, Corrosion resistance, High mechanical Strength
Fiberglass Yarn Type
Warp:33*4, Weft:33*4



3. Factors of Scoring In Quality Control


  • Fabric Quality
  1. We have our own factory in Shandong to produce alkali-free and medium-alkali glass fiber yarns, which are sent to the glass fiber cloth production plant in Changshu every week. We will control the quality and price from the source of the glass fiber cloth
  2. We have our own laboratory for product quality testing. We will select 50 meters for testing ​for every 1000 meters of fiberglass cloth. Each product has corresponding indicators. Only when all the inspections are qualified, we will send the goods to the customer, when we encounter products with unqualified quality, we will destroy them. The testing content includes Weft and Warp tension force, Weft and Warp density, Thickness, Width, Length, temperature resistance, electrical conductivity, and cloth surface quality inspection.
  3. If any testing data is less than the specified testing content, the roll will be rated as unqualified.
  4. Our company has Oven to test the Heat resistance temperature for each product by customer orders.



4. Product Application



Fiberglass fabric is an emerging industrial material with many special advantages, such as chemical resistance, fire resistance, waterproof, light weight, high strength and low shrinkage. Due to these characteristics, glass fiber materials have been used in many fields, such as engineering insulation applications, electrical insulation covering, chemical corrosion protection, construction applications and sound absorption

5. Product Features

1. High performance in chemical
2. Lightweight and high strength
3. Plain weave, even thickness and low fuzz
4. Fire resistance and heat resistance
5. Easily impregnated with resin and silicone rubber
6. E-glass Fabric has excellent electricity insulation property

6. More Pictures for Product and Package

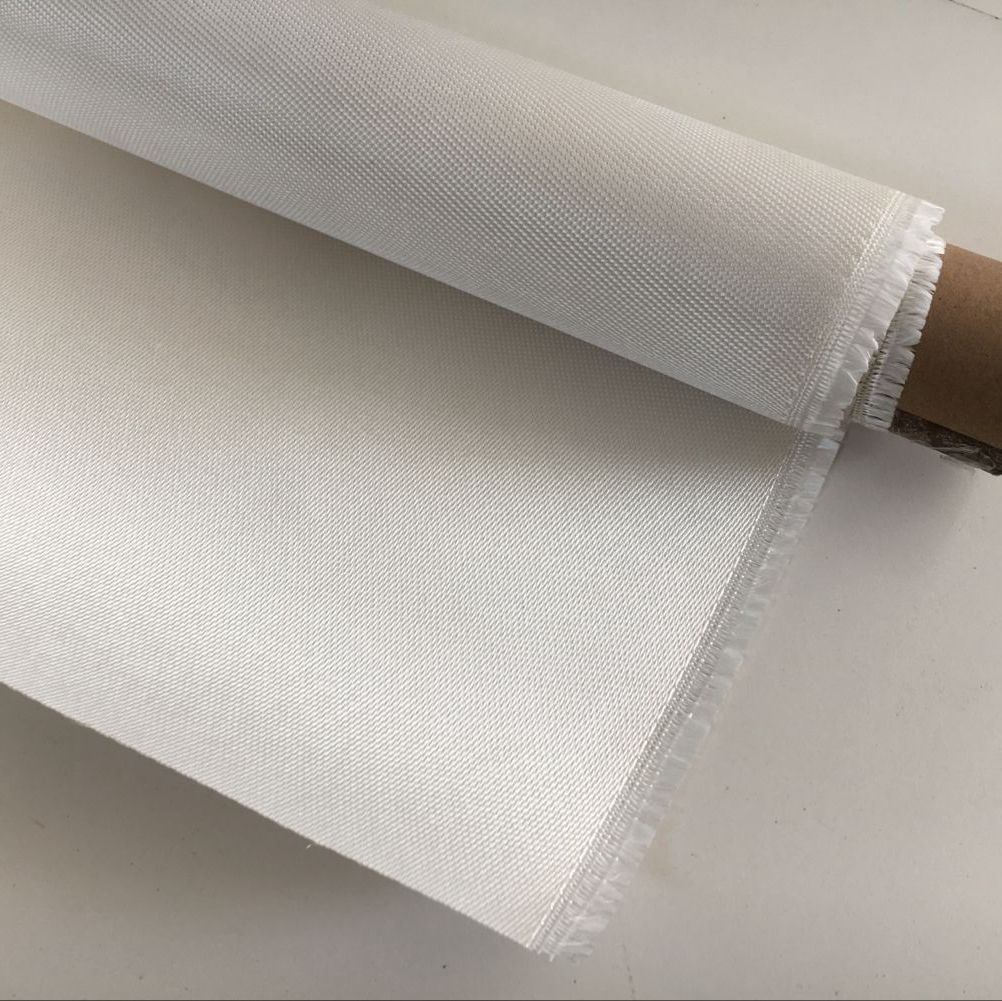

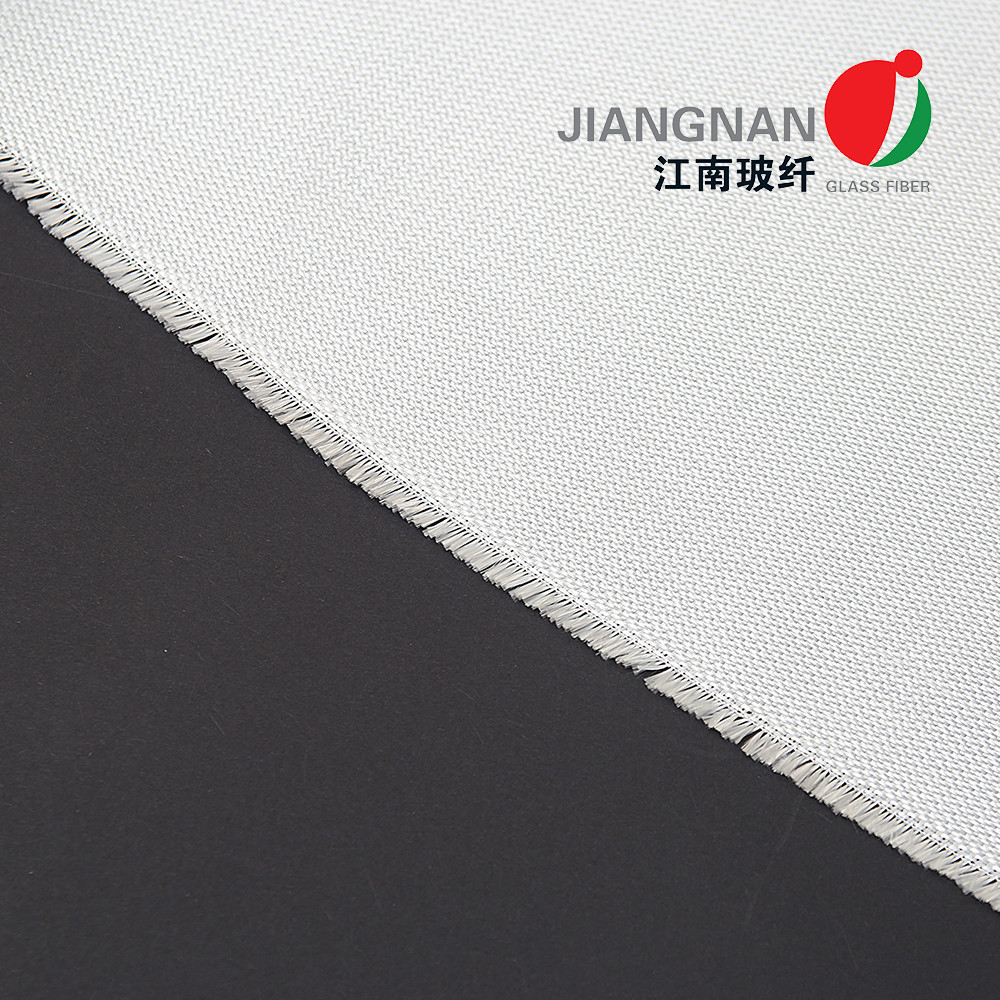

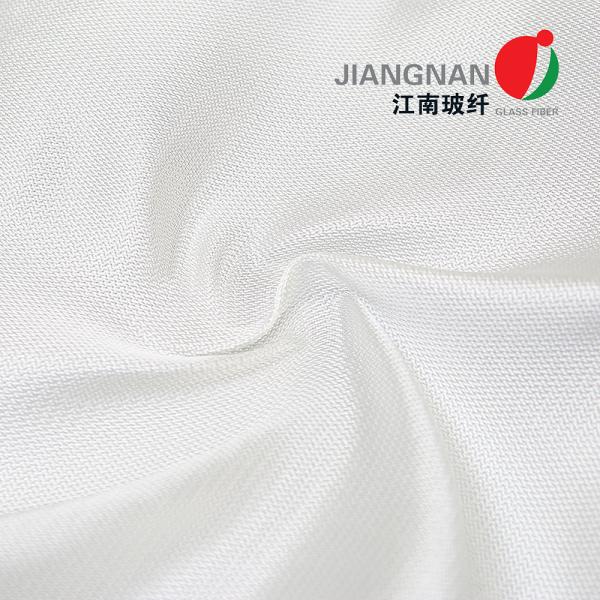

3732 430gsm 0.4mm Fiberglass Fabric Cloth Cross Twill Weave E Glass
3732 430gsm 0.4mm Fiberglass Fabric Cloth Cross Twill Weave E Glass

7. Related Products (If you want to other different thickness for fiberglass fabric)

Fiberglass Cloth Roving
Item Name Thickness (mm) Weight (g/m2) Weave Width Length (cm) Remarks
E7628 0.18 180 Plain 127 All Size Can be Customized
C7628 0.2 200 Plain 100/130/150
CW280 0.28 280 Plain 102
E3732 0.38 430 1/3 Satin 100/120/150/180/200
C3732 0.38 430 1/3 Twill 100/120/150/180/200
2523 0.38 380 Plain 100/120/150/180/200
E666 0.6 630 8H Satin 100/120/150/180/200
C666 0.6 630 8H Satin 100/120/150/180/200
E3784 0.8 850 8H Satin 100/120/150/180/200
C3784 0.8 850 8H Satin 100/120/150/180/200
E3786 1.2 850 8H Satin 100/120/150/180/200
C3786a 1.2 1000 12H Satin 100/120/150/180/200
C3786b 1.2 1200 12H Satin 100/120/150/180/200
C3786c 1.2 1300 12H Satin 100/120/150/180/200
E3788 1.6 1650 12H Satin 100/120/150/180/200
C3788 1.6 1650 12H Satin 100/120/150/180/200
