Boiler Material High Temperature Fiberglass Cloth
| Product Name | Temperature | Density | Expansivity | Specification(mm) |
| Expanded Graphite Paper | 1260C | 220-250kg/m3 | 500-600% | 60,000*610/1220*1 30,000*610/1,220*2 20,000*610/1,220*3 15,000*610/1,220*4 12,000*610/1,220*5 10,000*610/1,220*6 |
| Name | Type | Thickness Range |
| Ceramic Paper | TXZ-1350 | 1-5mm |
| | | 0.4-1mm, 5-8mm |
| | TXZ-1260 | 1-5mm |
| | | 0.4-1mm, 5-8mm |
| | TXZ-1400 | 1-5mm |
| | | 0.4-1mm, 5-8mm |
TDS
| Name | TXZ-1260 | TXZ-1350 | TXZ-1400 |
| Weight | 180±20 | 180±20 | 180±20 |
| Theoretical Temperature Resistance | 1260oC | 1350oC | 1400oC |
| Long-time Use T | 1000-1100oC | 1100-1200oC | 1200-1250oC |
| Weight Loss | <=8% | <=8% | <=8% |
| Al2O3 | >=42 | >=52 | >=49 [Zero>=3] |
| Linear Shrinkage (1000oC-24h) | <=4% | <=4% | <=4% |
| Al2O3+SiO2 | >=94 | >=94 | |
| Thermal conductivity [W/m k] | 400oC | <=0.1 | <=0.1 | <=0.1 |
| 800oC | <=0.12 | <=0.12 | <=0.12 |
| 1000oC | <=0.135 | <=0.135 | <=0.135 |
| Type | Meaning |
| TXZ-1260 | Moderate soft and hard Good strength Bent Widely application |
| TXZ-1260R | High Strength Easy Bend |
| TXZ-1260R+ | Good Softness Used for Warpping No rebound |
| TXZ-1260Y | High strength Not easy to crack Used for pad |
| TXZ-1260Y+ | Highest strength No layers Used for punching |

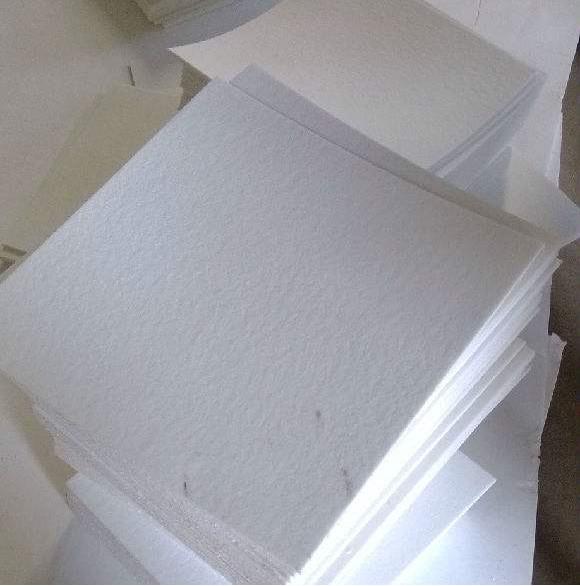

Ceramic fibre paper is manufactured from high purity ceramic fibre, adopt the wet inorganic ceramic fiber mechanization to implement a continuous production
Advanced production techniques ensure uniform fibre distribution and close control of thickness and density
Ceramic fibre paper adds minimum addition of carefully selected bonds, which burn out cleanly in service
1. Low thermal conductivity heat storage and heat capacity.
2. Excellent heat insulation.
3. Excellent chemical stability.
4. Shock and chemical attack resistant.
5. Low thermal conductivity and shrinkage.
6. Resilience under working condition, low shrinkage under high temperature.
7. Excellent sound insulation and resistance of folding.
Features
1. Low thermal conductivity
2. Excellent chemical stability
3. Resistance to burning
4. Good strength
5. Heat insulation and sound proofing and fire refractory
6. Low linear shrinkage
7. Good springiness for fibers convenient producing and installing
Application
1.Industrial casting
2.Heat insulation
3.Car muffler insulation effect
4.Furnace door seals
Production Process
Q1:Can I Print our Logo ou your products?
A1: Yes, OEM is supported, but Cross listing is necessary.
Q2: Can you provide samples?
A2: Yes, we can provide samples for free, but we do not pay for the freight
Q3: What is the MOQ?
A3: 100 Pieces
Q4: What payment ways do you support?
A4: online pay, Paypal, T/T, Western Union, Credit Card, etc
Q5: Delivery time of sample?
A5: We will prepare samples within 5 days
Q6: Delivery time of bulk order?
A6: 20-30 days.
Q7: Mode of transportation
A7: By sea, air, courier or train.
Q8: Are you a trading company or manufacturer?
A8: We are manufacturer with more than 60 years production experience, and we have three own factories in China.
